26"fashion carbon mountain bike

• Frame

  OCEAN Mountain Carbon, IsoSpeed, E2 tapered head tube, MicroTruss, Control Freak internal control routing, Carbon Armor, balanced post mount brake, PF92, Boost148 & G2 Geometry on 29ers

  Front suspension

  ZOOM fork, Solo Air, Accelerator damper, XX Sprint remote lockout, Predictive Steering 110, E2 carbon tapered steerer, G2 Geometry w/51mm offset on 29ers, 100mm travel

  Sizes

  15.5" (27.5" wheels); 17.5, 18.5, 19.5, 21.5" (29" wheels)

• WHEELS

  Wheels

  DT Swiss XMC1200 Carbon, tubeless strips & valves, 15mm front, 12mm rear, Predictive Steering 110, (Boost148 on 29ers)

  Tires

  Tyre Team Issue, Tubeless Ready, 120tpi, aramid bead, 29x2.00" (Tyre Team Issue, Tubeless Ready, 120tpi, aramid bead, 27.5x2.20")

• DRIVETRAIN

  Shifters

  Shimano M355 , 27 speed

  Rear derailleur

  Shimano M390, Shadow Plus

  Crank

  Prowheel Hollow crankset

  Cassette

  Shimano HG51-9, 9 speed

  Chain










  KMC







  COMPONENTS










  Saddle




  ZHONGHAO Black









  Seatpost




  alloy 30.8*250L










  Handlebar




  31.8, zero rise 580W










  Stem




  Alloy 28.6*31.8mm EXT;100MM 2.2T










  Headset




  Neco 44*30MM 10PCS H;9MM










  Brakeset




  Shimano M355 hydraulic disc

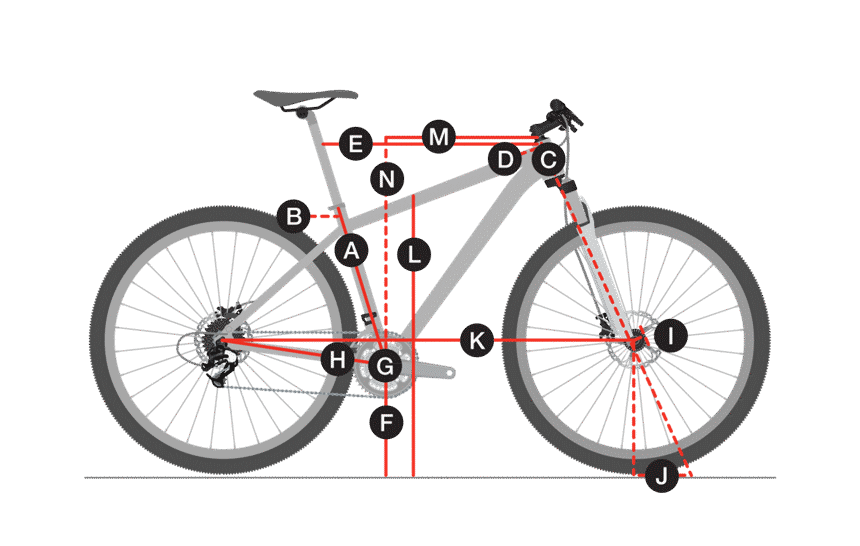

Frame size number       15.5 in             17.5 in             18.5 in                19.5 in               21.5 in

Actual frame size     15.5in              16.5in              17.5in                  18.5in              20.5in

ASeat tube                  39.4                41.9                 44.5                      47.0               52.1

BSeat tube angle        73.0 °              72.5 °              72.0 °                   72.0 °              72.0 °

CHead tube length       10.0               9.0                  9.0                        10.0                  12.0
